Contact Sensor (VS-CS)
Table of contents
The user must read the product documentation before proceeding with the information provided in this section.
The NEON Contact Sensor detects if the magnetic probe is in close proximity to the sensor. This consists of two parts: the sensor and the sensor magnet.
The sensor can be installed using the mounting holes of the sensor's bracket or using a band clamp. The user can install the sensor using the mounting holes by placing the bracket against a flat and earthed surface and using the screw holes or slots (designed for M6 fasteners) to fix it in place.
Mounting holes bracket
The user can also mount the sensor using a band clamp. Please note that in this case the bracket must be earthed as well.

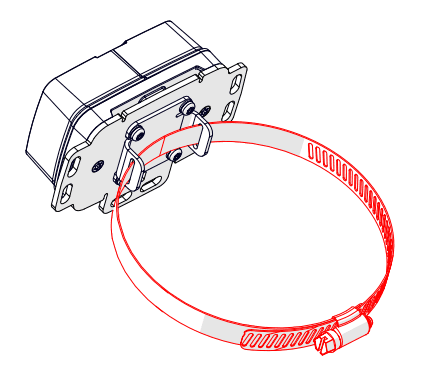

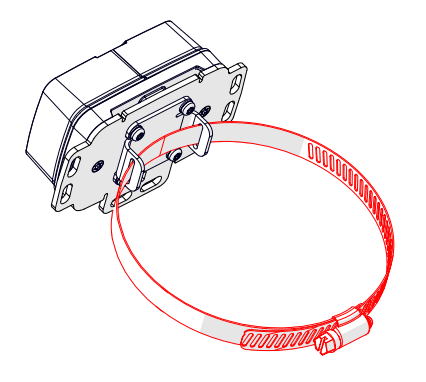

Installation using a band clamp

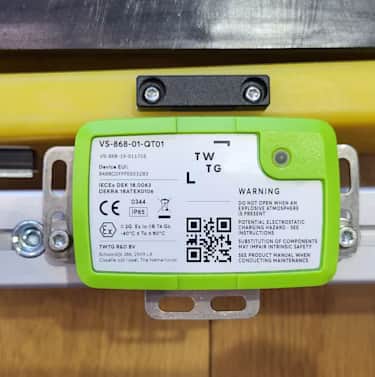

Additionally, the sensor magnet can be installed by placing it against a flat surface and using the screw holes or slots (designed for M5 fasteners) to fix it in place. The sensor magnet must be placed at a maximum distance of 25 mm away from the top part of the sensor. Please refer to the following images for reference.

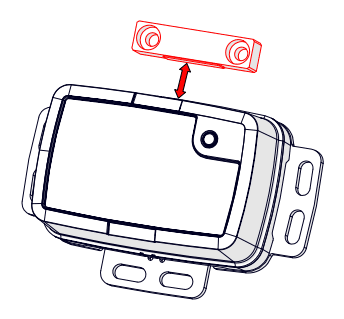

Schematics of the sensor magnet's position
